MIXER and PA setup
Johnson Music Museum Public Addess System

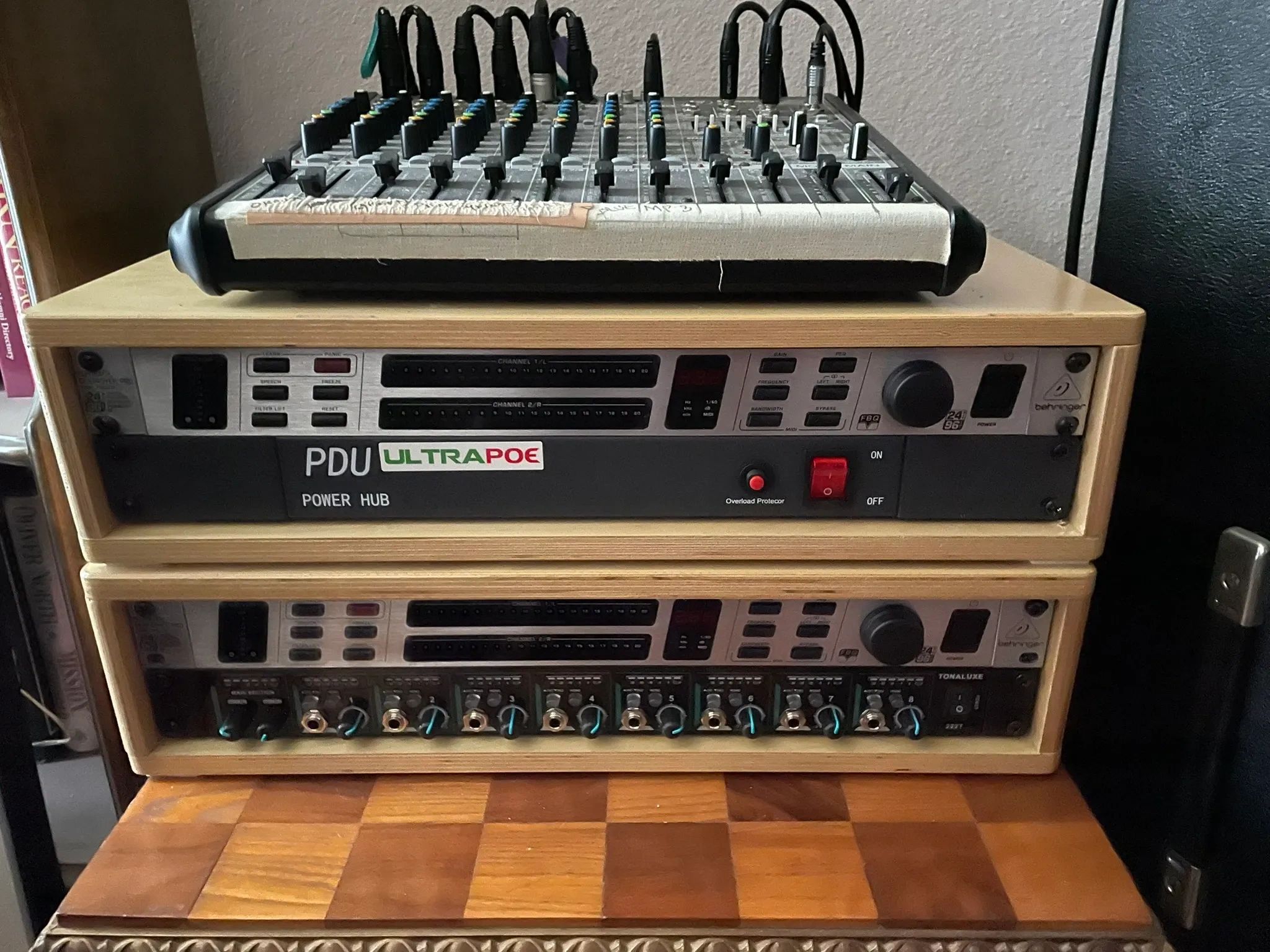

The Sure microphones are fed into the Rockville Pro FX12 mixer
From the MIXER the main output is fed into a FEEDBACK DESTROYER 1
From the MIXER the monitor output is fed into a FEEDBACK DESTROYER 2
From the MIXER the phones output is fed into a headphone 8 port distribution
After the MIXER ->
Ready to distribute the PA signal to 4 separate PA's
main feed, the signal is sent to the Barringer Tube Tone injector drive then to both the dB30 Signal strength indicator graphics display and to the Rockville RPA5 signal amplifier and finally delivered to the RockVille RPG4x10 PA controller(top) and three other PA output systems.
